PGP-50 Pneumatic Grease Pump

Get a Price/Quote

Product Details:

Inlet/Outlet Inlet: Grease Drum Direct; Outlet: 1/4 BSP
Caliber 50 kg drum capacity
Features Movable Trolley, High Pressure, Easy Operation, Durable
Voltage Not Applicable (Pneumatic Operation)
Discharge Pressure Upto 450 bar
Noise Level < 80 dB
Working Temperature -10C to 60C
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PGP-50 Pneumatic Grease Pump Price And Quantity

Minimum Order Quantity 10 Unit

Grease Drum Lid Included, Heavy Duty Steel
Air Connection 1/4" BSP Air Inlet
Grease Gun Type Heavy Duty Grease Gun with Coupler
Weight (Net) Approx. 24 kg (Empty)
Finish Type Powder Coated
Cart Wheels 2 Solid Rubber Wheels for Mobility
Air Compressor Required Min. 2 HP, 6-12 Bar Output
Hose Length 2 m High Pressure Hose Included
Dimensions (LxWxH) 450 mm x 450 mm x 1050 mm (approx.)

PGP-50 Pneumatic Grease Pump Product Specifications

Pump Type Pneumatic Grease Pump
Caliber 50 kg drum capacity
Inlet/Outlet Inlet: Grease Drum Direct; Outlet: 1/4 BSP
Pressure Air Inlet: 6-12 kg/cm2; Grease Output: up to 400-450 bar
Usage Industrial, Automotive Workshop Greasing
Structure Portable Trolley Mounted
Features Movable Trolley, High Pressure, Easy Operation, Durable
Standard IS/ISO Standards Complied
Noise Level < 80 dB
Discharge Pressure Upto 450 bar
Voltage Not Applicable (Pneumatic Operation)
Application Lubrication of Machinery, Vehicles, Industrial Equipment
Max Suction Suitable for High Viscosity Greases
Head Size 550 mm Drum Height
Speed Depend on Air Pressure
Working Temperature -10C to 60C
Flow Rate 0.85 kg/min
Priming Manual/Automatic (Air Assisted)
Mounting Type Wheeled, Portable
Capacity 50 kg Grease Capacity
Suction Type Bottom Suction from Drum
Control System Manual Trigger Handle
Material Mild Steel with Anti-Corrosive Powder Coating
Seals Type High-Quality Nitrile Rubber Seals
Power Operated by Compressed Air
Theory Air-Operated/Pneumatic Pump

Grease Drum Lid Included, Heavy Duty Steel
Air Connection 1/4" BSP Air Inlet
Grease Gun Type Heavy Duty Grease Gun with Coupler
Weight (Net) Approx. 24 kg (Empty)
Finish Type Powder Coated
Cart Wheels 2 Solid Rubber Wheels for Mobility
Air Compressor Required Min. 2 HP, 6-12 Bar Output
Hose Length 2 m High Pressure Hose Included
Dimensions (LxWxH) 450 mm x 450 mm x 1050 mm (approx.)

Product Description

Buy Online the rare and masterful PGP-50 Pneumatic Grease Pump-crafted with valorous engineering for industrial and automotive workshop greasing. This glorious, heavy-duty unit features a 2-meter high-pressure hose, robust powder-coated mild steel body, and a 50 kg grease drum capacity for unbeatable price and performance. With an air-operated mechanism, the PGP-50 delivers up to 450 bar discharge pressure and exceptional durability. Its portable trolley design and solid rubber wheels ensure effortless mobility. Engineered for reliability, efficiency, and compliance with IS/ISO standards-perfect for the modern professional.

Versatile Use, Premium Build, and Extra Features

The PGP-50 Pneumatic Grease Pump is renowned for its adaptability and strength, ideal for both industrial machinery and automotive workshops. Designed for lubricating vehicles, industrial equipment, and more, it offers manual or pneumatic priming and high-quality nitrile rubber seals for a leak-resistant experience. Its anti-corrosive powder-coated finish, portable wheeled trolley, and included grease drum lid enhance mobility and maintenance ease. Suitable for heavy-duty, high-viscosity greasing needs, it seamlessly fits into demanding workflows.

Delivery Time & Export Market Details

Drop-off timelines for the PGP-50 Pneumatic Grease Pump are tailored to meet your requirements-please inquire for specific schedules. The asking price and proposal amount can be provided upon request, ensuring you receive a competitive offer. With outstanding supply ability, we cater to global markets, making this product accessible to exporters, importers, manufacturers, suppliers, and traders. Main export destinations include major industrial hubs worldwide, ensuring a smooth acquisition for discerning clients.

FAQ's of PGP-50 Pneumatic Grease Pump:

Q: How does the PGP-50 Pneumatic Grease Pump operate?

A: The PGP-50 runs on compressed air, requiring a minimum 2 HP air compressor and 6-12 bar air inlet pressure for pneumatic operation, delivering grease output up to 450 bar.

Q: What applications is the PGP-50 best suited for?

A: It is perfect for lubrication in automotive workshops, industrial machinery, vehicles, and various industrial equipment-especially where high viscosity greases are required.

Q: Where can the PGP-50 Pneumatic Grease Pump be used?

A: Its portable wheeled design makes it suitable for use across workshops, factory floors, or industrial sites-wherever effective and high-pressure greasing is needed.

Q: What are the primary benefits of the PGP-50's features?

A: The heavy-duty construction, high-efficiency output, anti-corrosive coating, mobility, and reliable ISO standard compliance together ensure productivity and longevity.

Q: When should I opt for a pneumatic grease pump over manual options?

A: Choose the PGP-50 when you require higher grease output, efficiency, ease of operation, or need to handle high-capacity, high-viscosity greasing tasks.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Lube Pumps' category

POP-50 Pneumatic Oil Pump Minimum Order Quantity : 10 Application : Other, Automotive Service, Industrial Maintenance Voltage : Pneumatic (Airoperated, no electric voltage required) Discharge Pressure : Upto 8 bar Noise Level : < 75 dB Standard : Industrial Standard Features : Portable, High Efficiency, Durable Construction, Corrosion Resistant Structure : Other, Piston Type Usage : Other, Oil Transfer Pressure : Other, 0.30.8 MPa (Air Pressure) Inlet/Outlet : 3/8 BSP (inlet), 1/2 BSP (outlet) Caliber : 50 mm Pump Type : Other, Pneumatic Oil Pump Theory : Reciprocating Pump Power : Other, Pneumatic (Airdriven) Seals Type : Nitrile Rubber (NBR) Material : Aluminum Alloy & Steel Suction Type : Direct Suction Control System : Manual Trigger/Valve Capacity : 50 liters/minute Mounting Type : Drum/Barrel Mounted Priming : Selfpriming Flow Rate : 50 L/min Working Temperature : 10C to 80C Speed : Adjustable based on air input Head Size : Upto 50 meters Fuel Type : Other, Lubricating Oil & Noncorrosive Oil Max Suction : 5 meters Frequency : N/A Air operated Fuel Tank Capacity : Not Applicable Drum Mounted

Send Inquiry

HGP-10 Hand Grease Pump Minimum Order Quantity : 10 Application : Industrial, Automotive, Workshops, Heavy Equipment Maintenance, Other Voltage : Manual Operation (No Voltage Required) Discharge Pressure : Up to 4000 psi Noise Level : Silent Operation Standard : IS:7623 Features : Portable, Durable, Easy to Use, Corrosion Resistant Structure : Other, Portable Hand Operated Pump Usage : Other, Greasing and Lubrication for Machinery and Automotive Pressure : Other, Up to 4000 psi (Approx.) Inlet/Outlet : 1/4 BSP Caliber : Standard Pump Type : Other, Hand Grease Pump Theory : Other, Hand Operated Positive Displacement Pump Power : Other, Manual Seals Type : Nitrile Rubber (NBR) Material : Mild Steel Body, Chrome Plated Plunger Suction Type : Direct Suction via Handle Operation Control System : Manual Lever Capacity : 10 kg Grease Tank Mounting Type : Portable; Floor or Bench Mountable Priming : Manual Priming Flow Rate : 12 gms per Stroke Working Temperature : 10C to 60C Speed : Dependent on Manual Operation Head Size : Standard Hand Lever Size Fuel Type : Other, Grease Max Suction : Not Applicable (Manual Grease Pump) Frequency : Not Applicable (Manual Operation) Fuel Tank Capacity : 10 kg (Grease Reservoir)

Send Inquiry

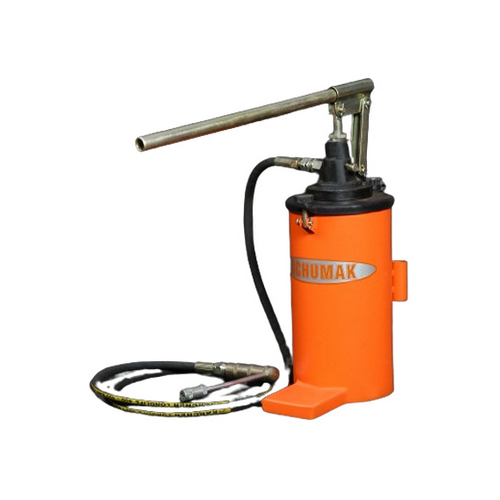

HGP-05 Hand Grease Pump Minimum Order Quantity : 10 Application : Other, Industries, Workshops, Automotive Maintenance Voltage : Manual Operation (No Voltage Required) Discharge Pressure : Up to 4500 PSI (Approx.) Noise Level : Less than 70 dB (Manual) Standard : Conforms to IS Standards Features : Lightweight, Portable, Robust Construction, Leakproof Seals Structure : Other, Tubular Cylinder with Piston and Lever Usage : Other, Grease Dispensing and Lubrication Pressure : Other, Up to 4500 PSI Inlet/Outlet : Inlet 1/4 BSP, Outlet 1/4 BSP Caliber : Standard Grease Gun Caliber Pump Type : Hand Grease Pump, Other Theory : Other, HandOperated Positive Displacement Pump Power : Other, Hand Operated Seals Type : Nitrile Rubber Seal Material : Steel Body with Plated Finish Suction Type : Reciprocating Piston Suction Control System : Manual Lever Control Capacity : 5 Kg Grease Capacity Mounting Type : Portable (with Carry Handle) Priming : Manual Priming Flow Rate : 56 grams per stroke Working Temperature : 10C to 60C Speed : Depends on Manual Operation Head Size : Standard (for 5 kg container) Max Suction : Up to 2 meters (manual draw)
